TRMNL (X)
Optional add-ons
Clarity Kit includes battery upgrade, developer edition, charging cable.
This is a pre-order. Ships by end of 2025.
Pairs well with
Not in stock! Ships by end of 2025.
Cancel for a full refund at any time.
TRMNL (X)
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
Product details
Screen
10.3" e-ink display, high density, 1872x1404 resolution, with 16 grayscale. Full refresh <= 1.2s, partial refresh <=200ms
Enclosure

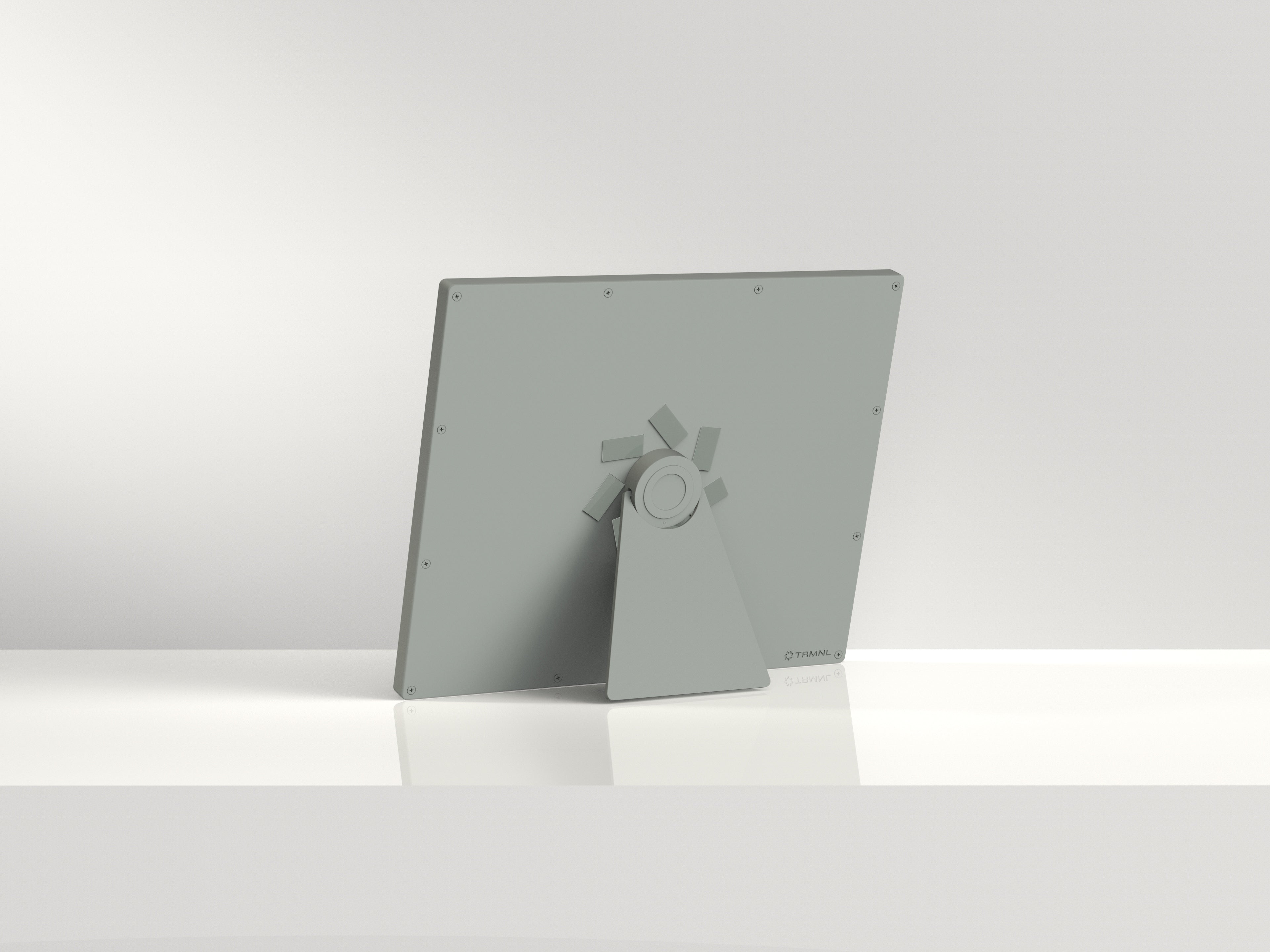

No branding on front, magnetic connector with USB-C charging, screws to open and mod, waterproof
Battery
5000 or 10000 mAh options that last 2-6 months pending refresh preferences
Firmware
Open source, 2.4/5ghz WiFi support, gesture-based controls, built-in accelerometer, Qwiic connector
Detailed Specs
- 10.3" 1872x1404 EPD resolution 16 shades of gray

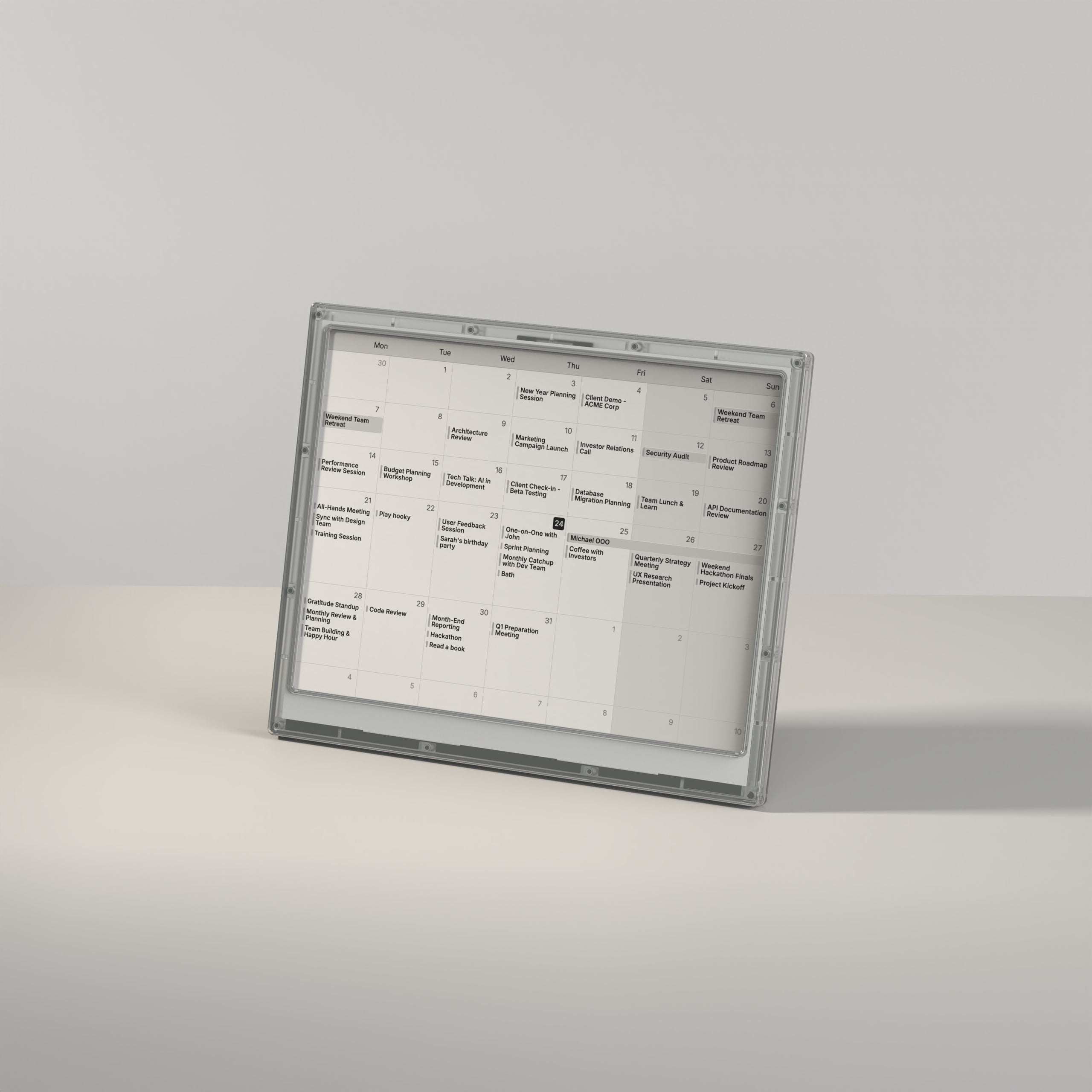

- Dust and basic waterproofing with a hacker-friendly enclosure
- ESP32-S3 with 16MB of flash and 8MB of PSRAM as a core processor with fallback 2.4GHz WiFi
- 5GHz WiFi support via ESP32-C5 as a modem (external antenna)
- Support up to 2x 5000mAh 3.8V LiPo batteries with automatic detection
- Battery gas gauge from TI for battery SOC/SOH/capacity tracking
- Bosch accelerometer for portrait/landscape orientation
- Gesture touch-bar based on Azotech IC
- Magnetic pogo pin-based mount for charging and accessories (Coming 2026)
- OTG support with 5V 2A output
TRMNL X

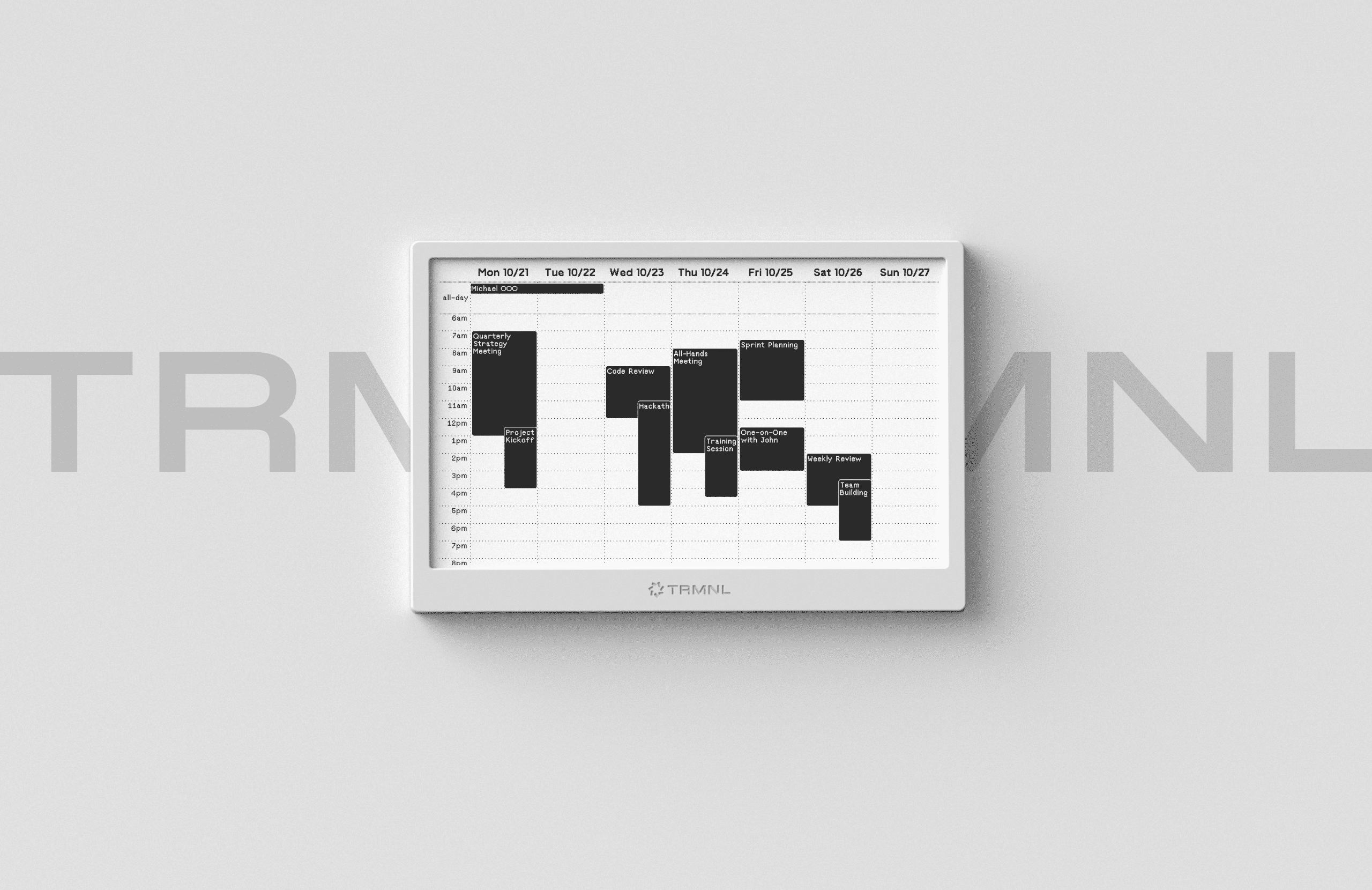

Introducing TRMNL X
TRMNL X is larger, faster, and more powerful than our OG model. Learn more.
What's new with TRMNL X?
- faster refresh (< 200 ms)
- higher definition
- removed branding on front case
- waterproof + dust proof enclosure
- faster data syncing
- portrait orientation (coming soon)
Growing Ecosystem
400+ plugins supported
